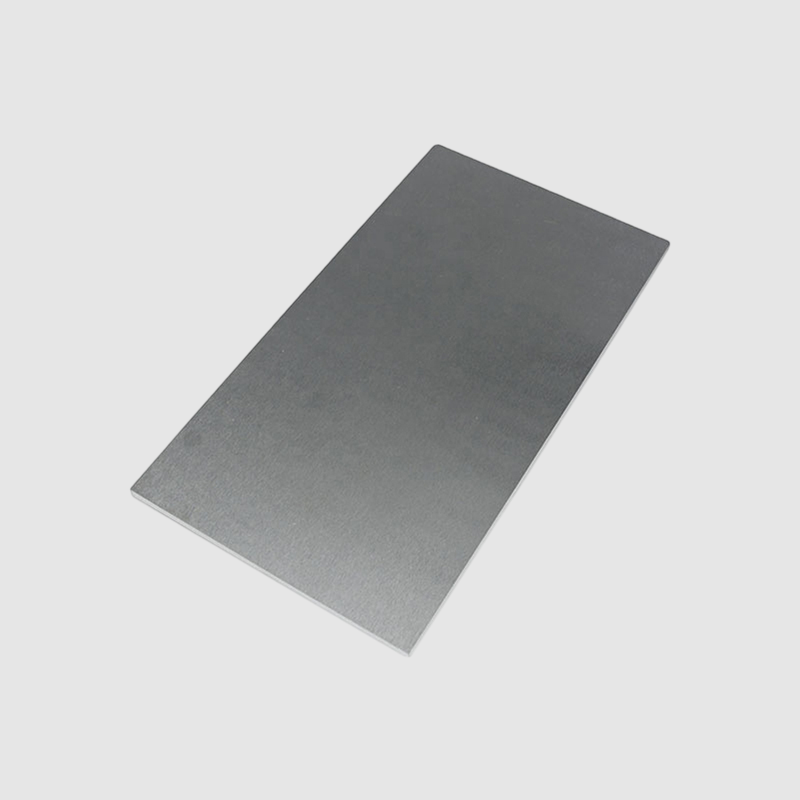

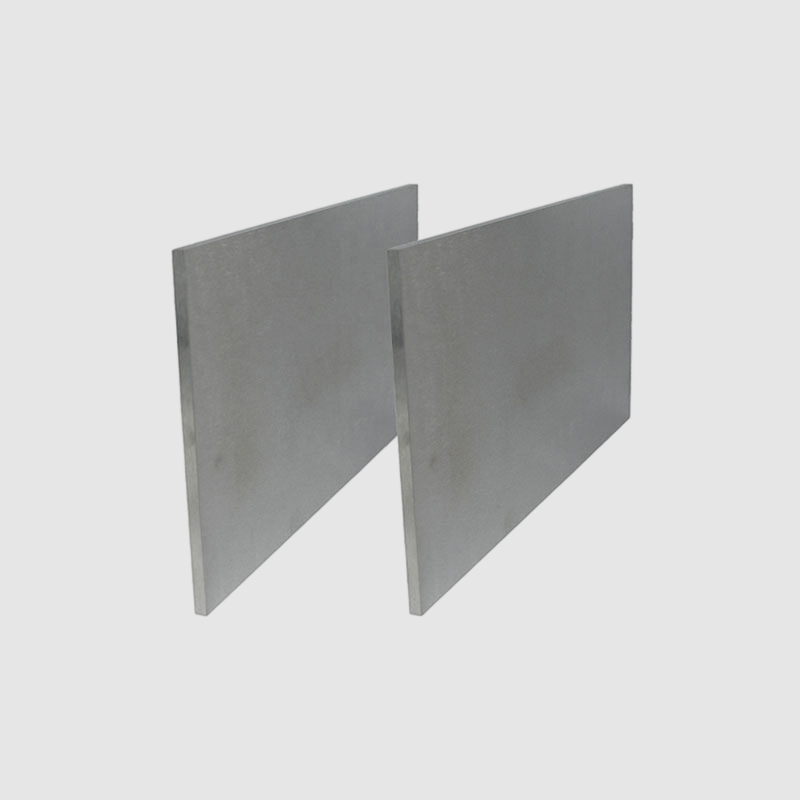

Molybdenum Plate&sheet

Attribute：
For producing electric light source parts, components of electric vacuum and electric power semiconductor
For producing Mo-boats, heat shield and heat bodies in high temperature furnace
Used to produce Sputtering Targets

Size:
0.05~50.0mm(Thickness) × 50~600mm(Width) × 100~3000mm
Chemical Composition:

Overview
Recommended Products

Parameter：

Provide all kinds of Molybdenum crucibles according to customer's drawings and machine to reach high precision.

Mo content	Total Content of Other Elements	Each Element Content
≥99.95%	≤0.05%	≤0.01%

Product Description:

Extremely high melting point (2620℃), excellent high-temperature resistance, no softening or deformation under ultra-high temperature working conditions.
Low thermal expansion coefficient, stable dimensional accuracy under temperature changes.
Good thermal conductivity and electrical conductivity, ideal material for heat conduction and electronic conductive components.
High density, high tensile strength and hardness, outstanding mechanical strength at high temperatures.

Applications：

Molybdenum plates are widely used in the production of reflection screen and cover plate in sapphire crystal growth furnace, reflection screen,hair band and connector in vacuum furnace, sputtering target for plasma coating, high temperature resistant boat and other products.

The product is packed in outer wooden box, with foam plastic plate inside. Or use the
outer carton for packaging, and use moisture-proof paper inside.
