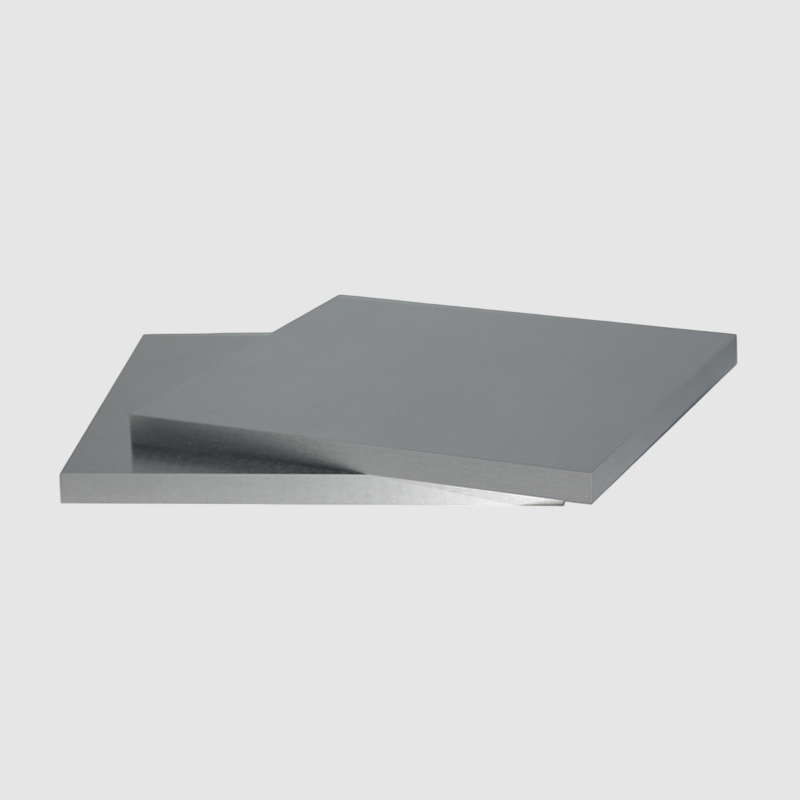

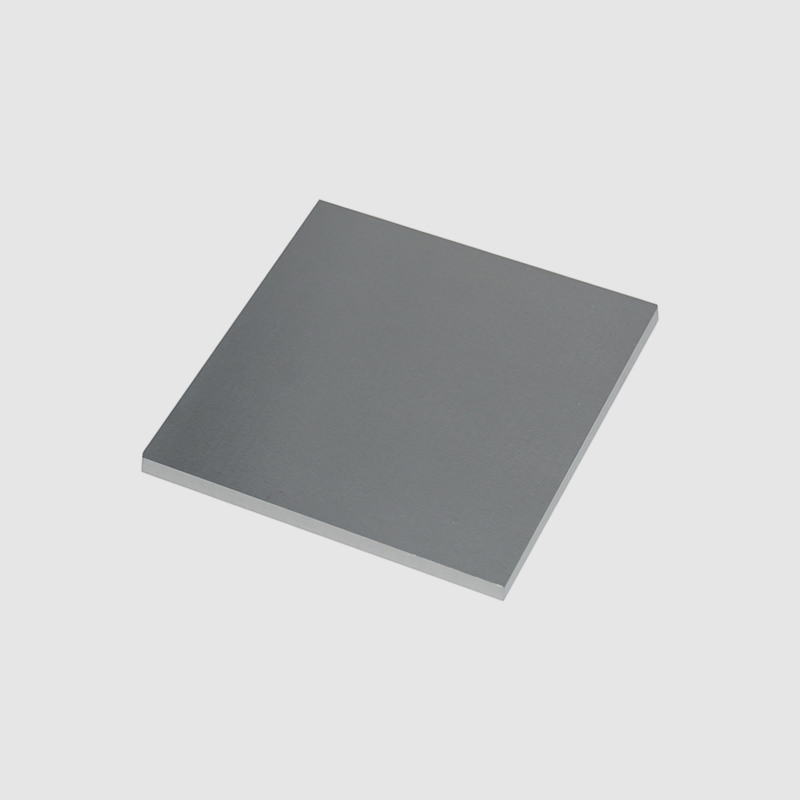

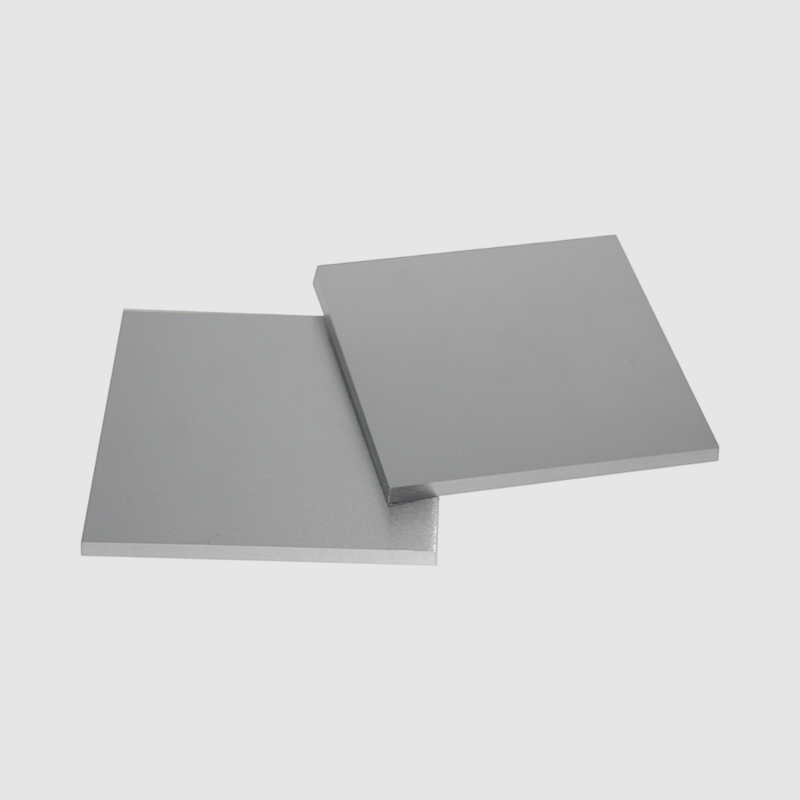

Tungsten Plate&sheet

Attribute：
Main Characteristics:
1. High melting point (3410°C)
2. Low thermal expansion
3. High electrical resistance
4. Low vapour pressure
5. Good thermal conductivity

High density
Appearance: Black or polished, hot roll or cold roll

Overview
Recommended Products

Parameter：

Size:
0.05~50mm(thickness)×50~500mm(width)×100~1500mm(length)

W Content	Total Content of Other Elements	Each Element Content
≥99.95%	≤0.05%	≤0.01%

Product Details：

Tungsten sheet can be applied in X-ray inspection device for medical use as the radiation shielding material and radiation-protective equipment for nuclear facilities. By special hot rolling and cold rolling processing, they can also be used as the materials for producing high quality tungsten electrode, heating element, heat shield, sintering boat, sputtering target, crucible and vacuum applications.

With high purity above 99.95%, metallic silver luster tungsten sheets are rolled and annealed to provide the optimum condition for the desired end use. We can provide rolled, cleaned, machined or ground finish tungsten sheets upon the customer required thickness.

Applications：

1. Suitable for producing ion implantation parts;
2. For producing electric light source parts,components of electric vacuum;
3. For producing W-boats,heat shield and heat bodies in high temperature furnace;
4. Used for tungsten sputtering target
