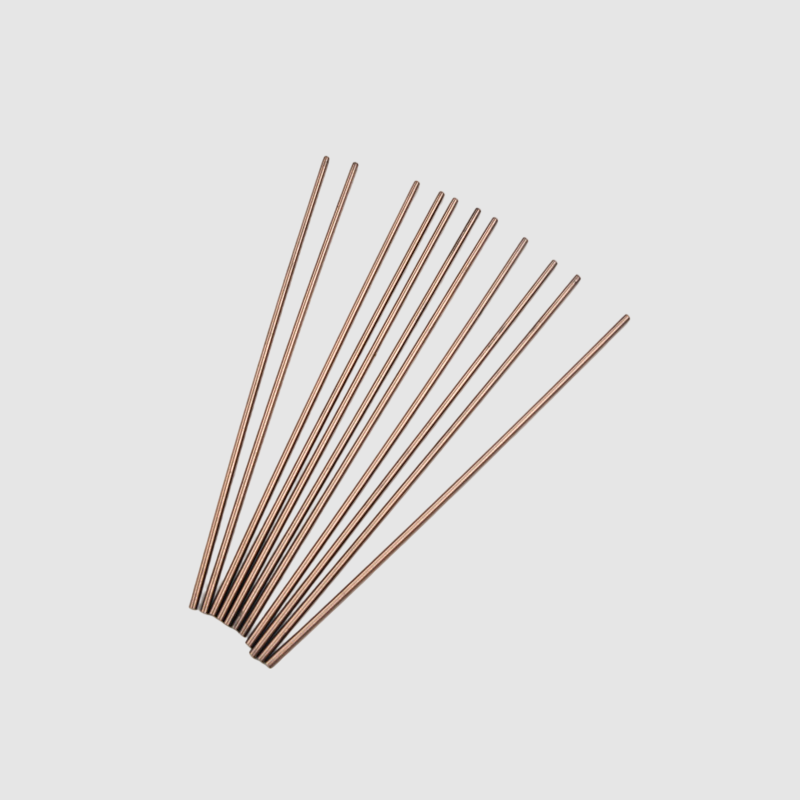

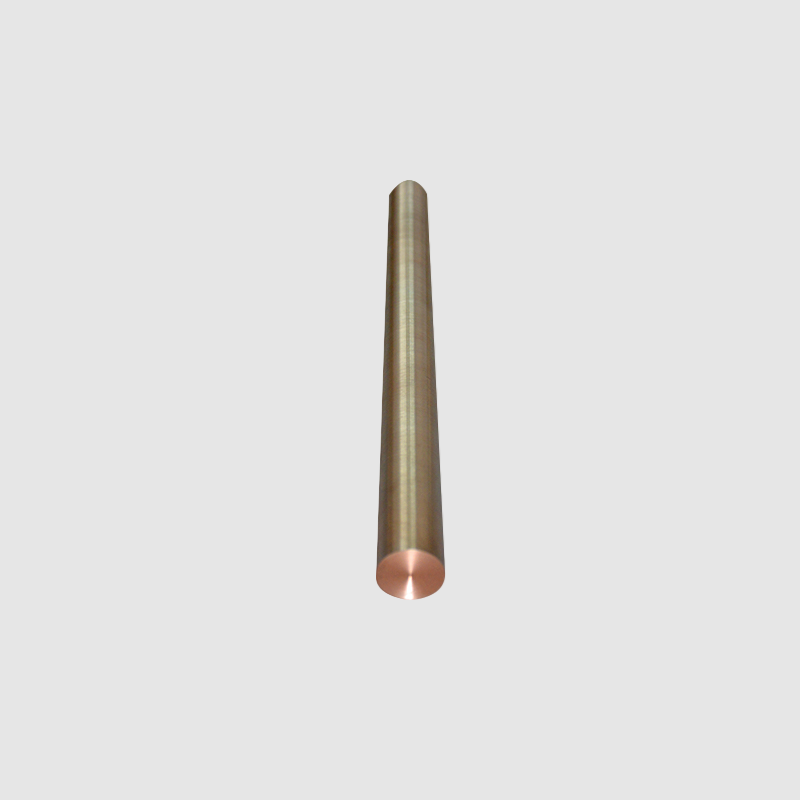

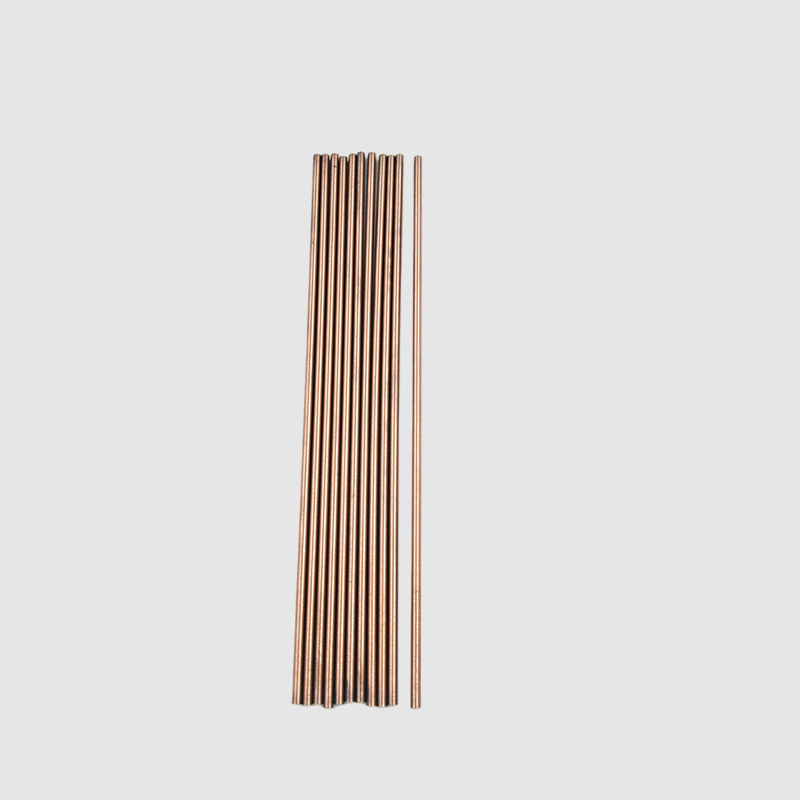

Tungsten-copper Alloy Rod

Attribute：
Tungsten Copper Composites are offered with 6~50wt.% Cu.
Advantages：
1. High arc resistance combined with good electrical conductivity;
2. High thermal conductivity;
3. Low thermal expansion;

Overview
Recommended Products

Parameter：

Chemical Composition, Physical & Mechanical Properties of Tungsten-Copper Composites:

Class	Chemical Composition (wt%)			Density	Hardness	Resistivity	IACS	Bending Strength
Class	Cu	Total Impurities≤	W	g/cm3 ≥	HB Kgf/mm2 ≥	μΩ.cm ≤	% ≥	MPa ≥
W50/Cu50	50±2.0	0.5	Balance	11.85	115	3.2	54	--
W55/Cu45	45±2.0	0.5	Balance	12.3	125	3.5	49	--
W60/Cu40	40±2.0	0.5	Balance	12.75	140	3.7	47	--
W65/Cu35	35±2.0	0.5	Balance	13.3	155	3.9	44	--
W70/Cu30	30±2.0	0.5	Balance	13.8	175	4.1	42	790
W75/Cu25	25±2.0	0.5	Balance	14.5	195	4.5	38	885
W80/Cu20	20±2.0	0.5	Balance	15.15	220	5	34	980
W85/Cu15	15±2.0	0.5	Balance	15.9	240	5.7	30	1080
W90/Cu10	10±2.0	0.5	Balance	16.75	260	6.5	27	1160

Product Features of Tungsten-copper Alloy Rod:

Tungsten-copper alloy rod integrates high melting point of tungsten and excellent conductivity of copper. It features ultra-high density, outstanding thermal and electrical conductivity, along with low thermal expansion coefficient, delivering stable dimensional accuracy under frequent temperature changes. The uniform tungsten-copper composite microstructure brings superior arc ablation resistance and anti-sputtering performance, with minimal material loss during high-current discharge. It boasts good machinability for turning, drilling and precision shaping. With great high-temperature strength and oxidation resistance, it won’t soften or deform easily under extreme heat. Free of segregation, it maintains consistent performance throughout the rod. Widely used as electrode materials, heat sink components and high-voltage switch contacts, it serves long service life with reliable stable operation under heavy load working conditions.

Applications：
1. Arcing contacts and vaccum contacts in high and medium voltage breakers or vaccum interruptors；
2. Electrodes in electric spark erosion cutting machines；
3. Electrodes for resistance welding；
