Attribute：
Main Characteristics:
High melting point (2610°C)
Low thermal expansion
High thermal conductivity
Low vapour pressure
Excellent corrosion resistance against molten metals and glass
Mass Characteristics:
Symbol: Mo
Atomic Number: 42
Atomic Weight: 95.94
Density: 10.22 g/cc at 20°C
Compressibility: 36 micron 2/N at 293°C
Thermal Properties:
Melting Point: 2610°C
Boiling Point: 5560°C
Specific Heat: 0.276 kJ/kg x K at 20°C
Latent Heat of Fusion: 270 kJ/kg (estimated)
Thermal Conductivity: 142 W/m x K at 20°C
Heat of Combustion: 7.58 MJ/kg Mo
Electrical Properties:
Electrical Conductivity: 34% IACS at 0°C
Electrical Resistivity: 53.4 nΩ·m at 20°C
Thermal Electromotive Force: 1.45 mV versus platinum, 0 to 100°C
Electrochemical Equivalent: Valence 6, 0.1658 mg/C
Optical Properties:
Reflectivity: 46% at 500 nm, 93% at 10,000 nm
Color: Silvery white
Mechanical Properties:
Molybdenum distinguishes itself with those unique properties: high melting point, high creep resistance and low thermal expansion. The properties of the pure molybdenum could also be improved by alloying. According to the application environments and the operating temperatures, TLWM offer the best molybdenum alloy for our customers.
Chemical Properties:
Molybdenum has extremely good resistance to corrosion by numerous acids, liquid metals and molten glass, provided oxidizing agents are not present. Molybdenum is relatively inert in hydrogen, ammonia, and nitrogen up to about 1100°C.
Parameter：

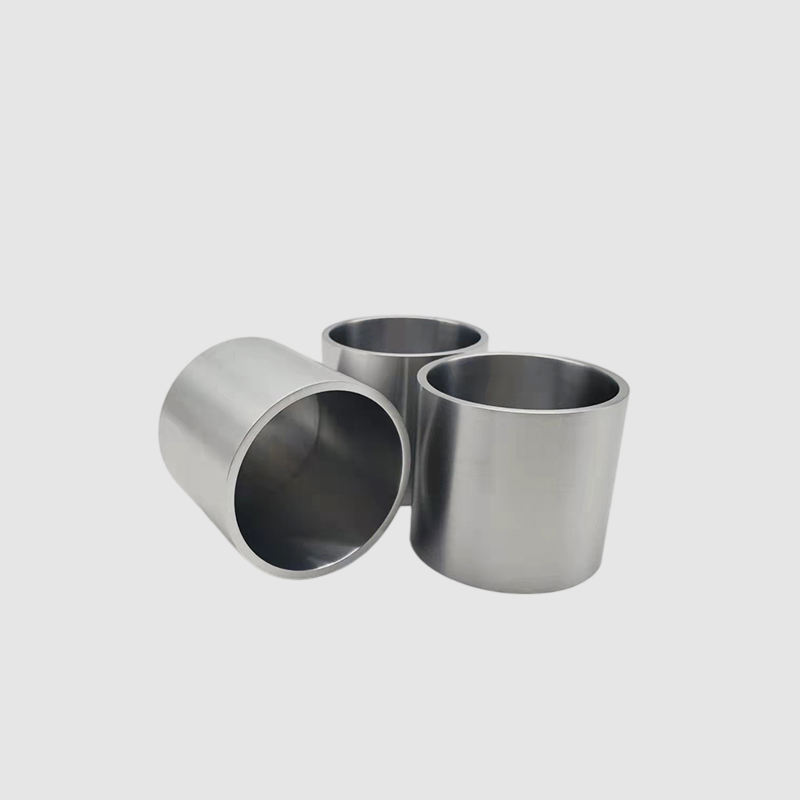

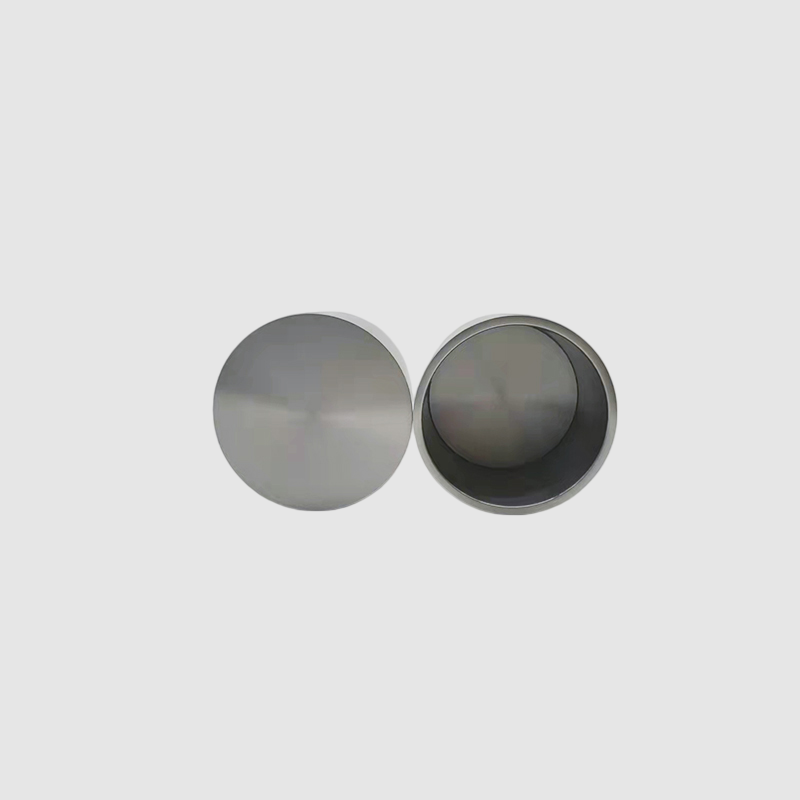

Provide all kinds of Molybdenum crucibles according to customer's drawings and machine to reach high precision.
| Diameter(mm) | Wall Thickness(mm) | Length(mm) |
| 30~50 | 0.3~10 | <2000 |
| 50~100 | 0.5~15 | |
| 100~150 | 1~15 | |
| 150~300 | 1~20 | |
| 300~400 | 1.5~30 | |
| 400~500 | 2~30 |
Applications：
Molybdenum is widely used to produce crucibles and other parts for Sapphire crystal growth and rare-earth melting with its high temperature resistance, low pollution and other good characteristics.
